Type
Testatretta 11°, V2 - 90°, 4 valves per cylinder, desmodromic valvetrain, liquid cooled
Displacement
937 cc (57 cu in)
Bore for Stroke
94 mm x 67.5 mm
Compression Ratio
13.3:1
Power
111 hp (82 kW) @ 9,250 rpm
Torque
9.5 kgm (93 Nm, 69 lb ft) @ 6,500 rpm
Fuel Injection
Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
Exhaust
Pre-muffler and Termignoni type approved twin muffler, catalytic converter and 2 lambda probes
Gearbox
6 speed with Ducati Quick Shift up/down
Primary Drive
Straight cut gears, ratio 1.85:1
Ratio
1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
Final Drive
Chain, front sprocket z15, rear sprocket z43
Clutch
Slipper and self-servo multiplate wet clutch with hydraulic control
Frame
Aluminum alloy Front Frame
Front Suspension
Fully adjustable Öhlins NIX 30 Ø 43 mm usd front fork with TiN treatment on inner tube
Front Wheel
Forged aluminum alloy, 3.5" x 17"
Front Tire
Pirelli Diablo Rosso IV 120/70 ZR17

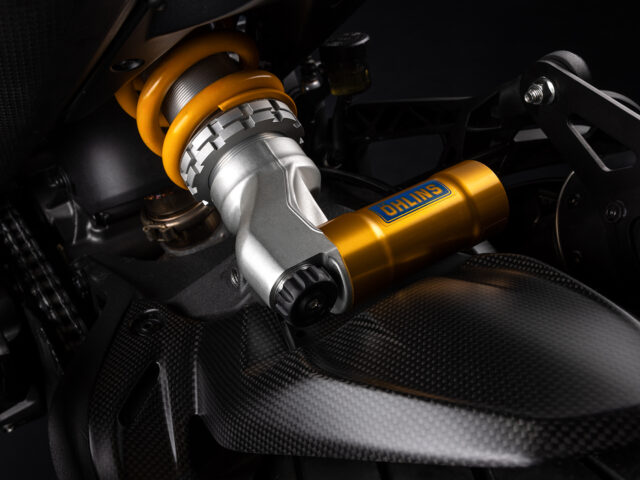

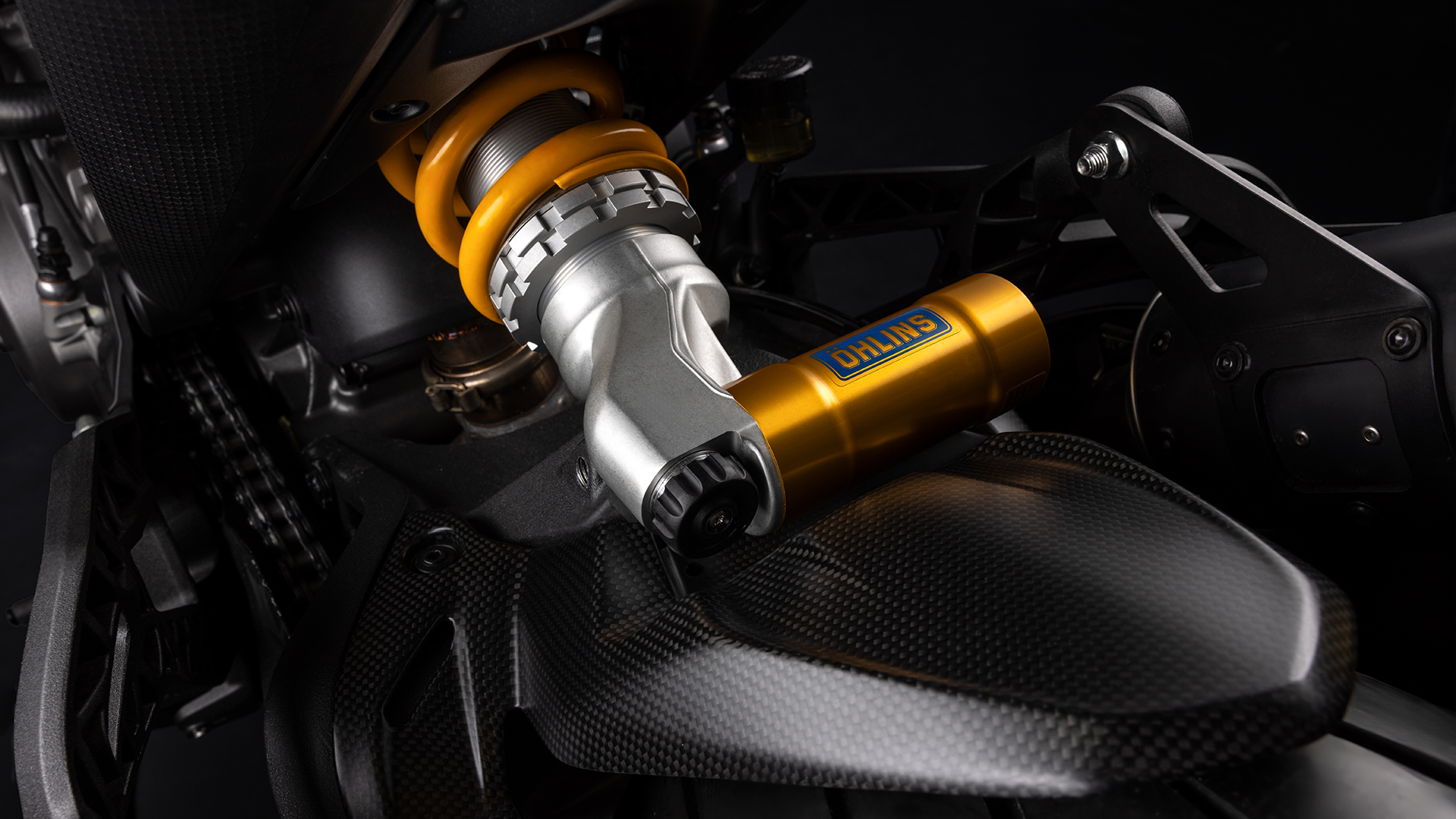

Rear Suspension
Progressive linkage, fully adjustable Öhlins monoshock, aluminium double-sided swingarm
Rear Wheel
Forged aluminum alloy, 5.5" x 17"
Rear Tire
Pirelli Diablo Rosso IV 180/55 ZR17
Wheel Travel (Front/Rear)
140 mm / 150 mm (5.5 in / 5.9 in)

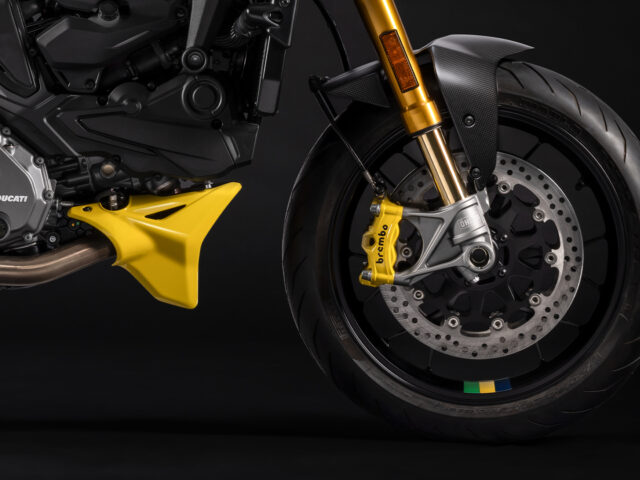

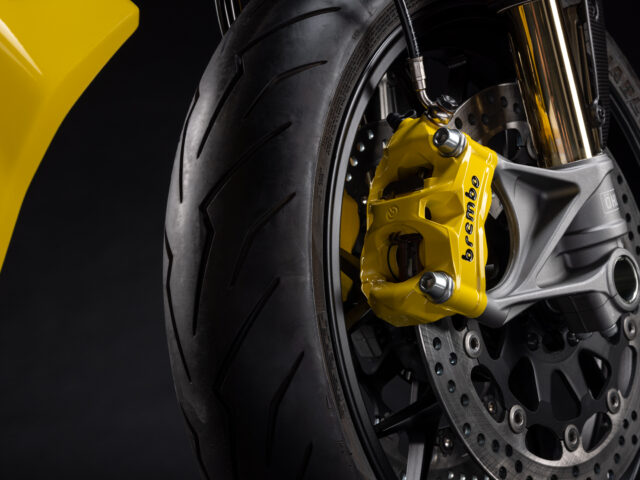

Front Brake
2 x Ø 320 mm semi-floating aluminum flange discs, radially mounted Brembo Stylema® monobloc 4-piston callipers, radial master cylinder, Cornering ABS
Rear Brake
Ø 245 mm disc, Brembo 2-piston floating calliper, Cornering ABS
Instrumentation
4.3" TFT colour display
Wet weight no fuel
175 kg (386 lb)
Seat Height
840 mm (33.1 in)
Wheelbase
1,472 mm (57.9 in)
Rake
23°
Front Wheel Trail
87 mm (3.4 in)
Fuel Tank Capacity
14 l (3.7 US gal)
Number of Seats
2
Safety Equipment
Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Brake Light
Standard Equipment

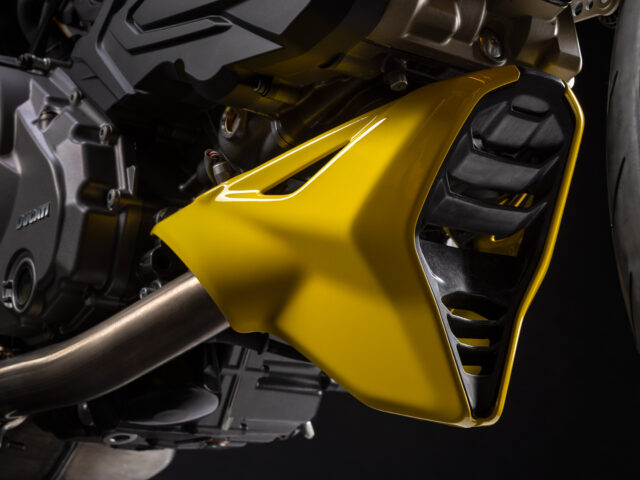

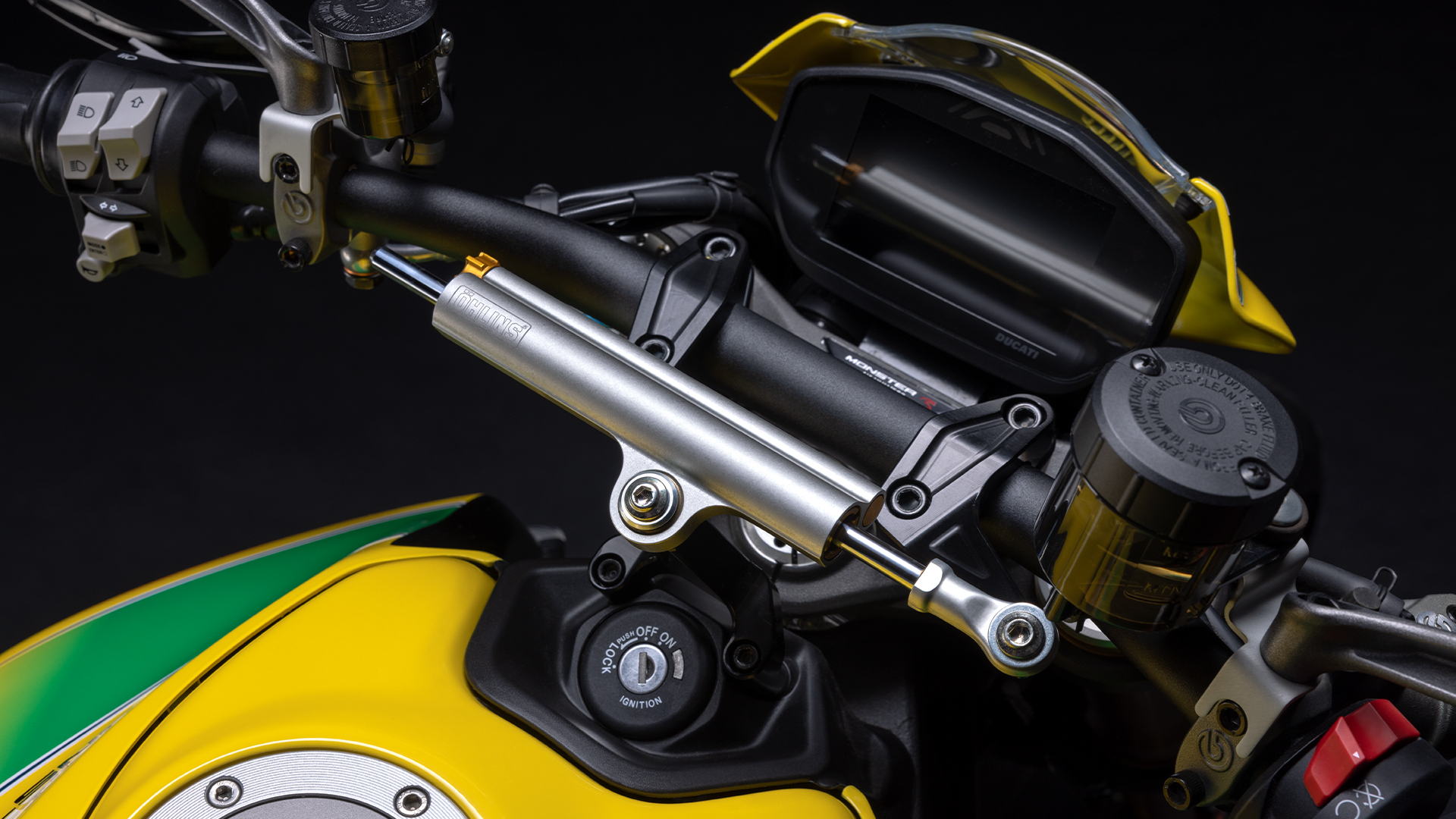

Ducati Quick Shift, Ducati Power Launch, 4.3" TFT colour display, Full LED headlight and lighting system, Dynamic turn indicators*, USB power socket, Flyscreen, Passenger seat cover, Brembo Stylema® callipers, Termignoni type approved twin muffler, Öhlins steering damper, Lithium-ion battery, Front and rear mudguards in carbon fibre, Engine belly fairing, Billet aluminium footpegs
Provided Equipment
Dedicated bike cover, Certificate of authenticity
Ready For
Ducati Multimedia System, Heated grips
Warranty
24 months, unlimited mileage
Maintenance service intervals
15,000 km (9,000 miles) / 24 months
Valve Clearance Check
30,000 km (18,000 miles)
